for channelNr = activeChnList

for channelNr = 1:numel(activeChnList)
% channelNr 应为1或2或3......或8。但诡异的原因，channelNr可能意外的变成一行矩阵[1,2,3,4,5,6,7,8]，导致接下来使用channelNr 的代码报错

%--- For all channels in the list ...
for channelNr = activeChnList

for channelNr = 1:numel(channelList)

activeChnList=intersect(find(satElev>=settings.elevationMask),readyChnList);

activeChnList=intersect(find(satElev>=settings.elevationMask),readyChnList,'legacy');for channelNr = 1:numel(channelList)

%% Analyze detected preamble like patterns ================================
    for i = 1:size(index) % For each occurrence

%% Analyze detected preamble like patterns ================================
    % for i = 1:size(index) % For each occurrence
    for i = 1:length(index)

%% Clean up the environment first =========================================
clear; close all; clc;

format ('compact');	 % 设置为紧凑型
format ('long', 'g');

%--- Include folders with functions ---------------------------------------
addpath include             % The software receiver functions
addpath geoFunctions        % Position calculation related functions
addpath IFdata\kaikuodata\     % Add IF data

%% Initialize constants, settings =========================================
settings = initSettings();

%% Generate plot of raw data and ask if ready to start processing =========
try
    fprintf('Probing data (%s)...\n', settings.fileName)
    probeData(settings);
catch
    % There was an error, print it and exit
    errStruct = lasterror;
    disp(errStruct.message);
    disp('  (run setSettings or change settings in "initSettings.m" to reconfigure)')
    return;
end

disp('  Raw IF data plotted ')
disp('  (run setSettings or change settings in "initSettings.m" to reconfigure)')
disp(' ');
gnssStart = input('Enter "1" to initiate GNSS processing or "0" to exit : ');

if (gnssStart == 1)
    disp(' ');
    %start things rolling...
    postProcessing
end

function settings = initSettings()
%Functions initializes and saves settings. Settings can be edited inside of
%the function, updated from the command line or updated using a dedicated
%GUI - "setSettings".
%
%All settings are described inside function code.
%
%settings = initSettings()
%
%   Inputs: none
%
%   Outputs:
%       settings     - Receiver settings (a structure).

% CVS record:
% $Id: initSettings.m,v 1.9.2.31 2006/08/18 11:41:57 dpl Exp $

%% Processing settings ====================================================
% Number of milliseconds to be processed used 36000 + any transients (see
% below - in Nav parameters) to ensure nav subframes are provided
settings.msToProcess        = 60000;        %[ms]

% Number of channels to be used for signal processing
% 用于信号处理的通道数
settings.numberOfChannels   = 12;

% Move the starting point of processing. Can be used to start the signal
% processing at any point in the data record (e.g. for long records). fseek
% function is used to move the file read point, therefore advance is byte based only.
% 移动处理的起点，可用于在数据记录的任何点开始信号处理(例如长记录)
settings.skipNumberOfBytes     =120000000;

%% Raw signal file name and other parameter ===============================
% This is a "default" name of the data file (signal record) to be used in
% the post-processing mode
settings.fileName           = 'usbdata.bin';
% Data type used to store one sample 用于存储一个样本的数据类
settings.dataType           = 'int8';

% Intermediate, sampling and code frequencies
settings.IF                 =16.368e6; 		% 中频 [Hz]
settings.samplingFreq       =16.368e6; 		% 采样频率 [Hz]
settings.codeFreqBasis      = 1.023e6; 		% C/A码的码率 [Hz]

% Define number of chips in a code period
settings.codeLength         = 1023;

%% Acquisition settings ===================================================
% Skips acquisition in the script postProcessing.m if set to 1 是否跳过捕获程序，如果置1则在postProcessing.m中跳过捕获程序
settings.skipAcquisition    = 0;
% List of satellites to look for. Some satellites can be excluded to speed up acquisition
% 需要捕获的卫星名单，为了加快捕获速度，可以排除一些卫星
settings.acqSatelliteList   = 1:32;         %[PRN numbers]
% Band around IF to search for satellite signal. Depends on max Doppler
% 最大多普勒频移的估算过程。指定卫星信号搜索的频率范围，为kHz的整数倍,并以IF为中心频率。用于捕获函数的步长为0.5kHz。
settings.acqSearchBand      = 14;           %[kHz]
% Threshold for the signal presence decision rule、
% 信号检测器的门限。
settings.acqThreshold       = 2.5;

%% Tracking loops settings 跟踪参数设置================================================
% Code tracking loop parameters
settings.dllDampingRatio         = 0.7;		% 衰减率 C/A码跟踪回路参数
settings.dllNoiseBandwidth       = 2;       % 噪声带宽 [Hz]
settings.dllCorrelatorSpacing    = 0.5;     % 相关器间距 [chips]

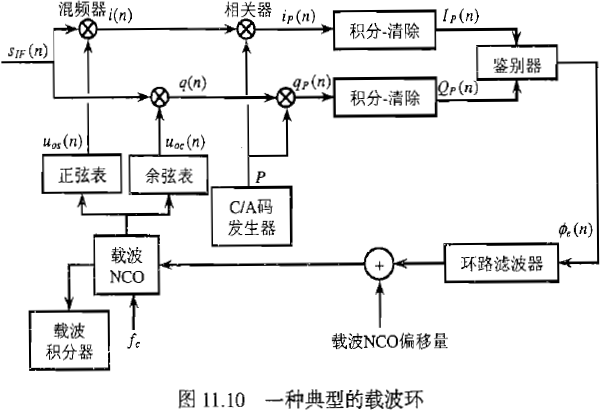

% Carrier tracking loop parameters
settings.pllDampingRatio         = 0.7;		% 衰减率 载波跟踪环路参数
settings.pllNoiseBandwidth       = 25;      %[Hz]

%% Navigation solution settings 导航参数 ===========================================

% Period for calculating pseudoranges and position
settings.navSolPeriod       = 500;          % 计算伪距和位置的周期 [ms]

% Elevation mask to exclude signals from satellites at low elevation
% 去除低仰角的卫星[degrees 0 - 90] 初始化取10
settings.elevationMask      = 10;           %[degrees 0 - 90]
% Enable/dissable use of tropospheric correction 启用/禁用对流层校正
settings.useTropCorr        = 1;            % 0 - Off
                                            % 1 - On
% True position of the antenna in UTM system (if known). Otherwise enter
% all NaN's and mean position will be used as a reference .
settings.truePosition.E     = nan;
settings.truePosition.N     = nan;
settings.truePosition.U     = nan;

%% Plot settings ==========================================================
% Enable/disable plotting of the tracking results for each channel
settings.plotTracking       = 1;            % 0 - Off
                                            % 1 - On

%% Constants ==============================================================

settings.c                  = 299792458;    % The speed of light, [m/s]
settings.startOffset        = 68.802;       %[ms] Initial sign. travel time

function probeData(varargin)
%Function plots raw data information: time domain plot, a frequency domain
%plot and a histogram.
%
%The function can be called in two ways:
%   probeData(settings)
% or
%   probeData(fileName, settings)
%
%   Inputs:
%       fileName        - name of the data file. File name is read from
%                       settings if parameter fileName is not provided.
%
%       settings        - receiver settings. Type of data file, sampling
%                       frequency and the default filename are specified
%                       here.

% CVS record:
% $Id: probeData.m,v 1.1.2.7 2006/08/22 13:46:00 dpl Exp $

%% Check the number of arguments ==========================================
if (nargin == 1)
    settings = deal(varargin{1});
    fileNameStr = settings.fileName;
elseif (nargin == 2)
    [fileNameStr, settings] = deal(varargin{1:2});
    if ~ischar(fileNameStr)
        error('File name must be a string');
    end
else
    error('Incorect number of arguments');
end

%% Generate plot of raw data ==============================================
[fid, message] = fopen(fileNameStr, 'rb');

if (fid > 0)
    % Move the starting point of processing. Can be used to start the
    % signal processing at any point in the data record (e.g. for long
    % records).
    fseek(fid, settings.skipNumberOfBytes, 'bof');

    % Find number of samples per spreading code
    samplesPerCode = round(settings.samplingFreq / ...
                           (settings.codeFreqBasis / settings.codeLength));

    % Read 10ms of signal
    [data, count] = fread(fid, [1, 10*samplesPerCode], settings.dataType);

    fclose(fid);

    if (count < 10*samplesPerCode)
        % The file is to short
        error('Could not read enough data from the data file.');
    end

    %--- Initialization ---------------------------------------------------
    figure(100);
    clf(100);

    timeScale = 0 : 1/settings.samplingFreq : 5e-3;

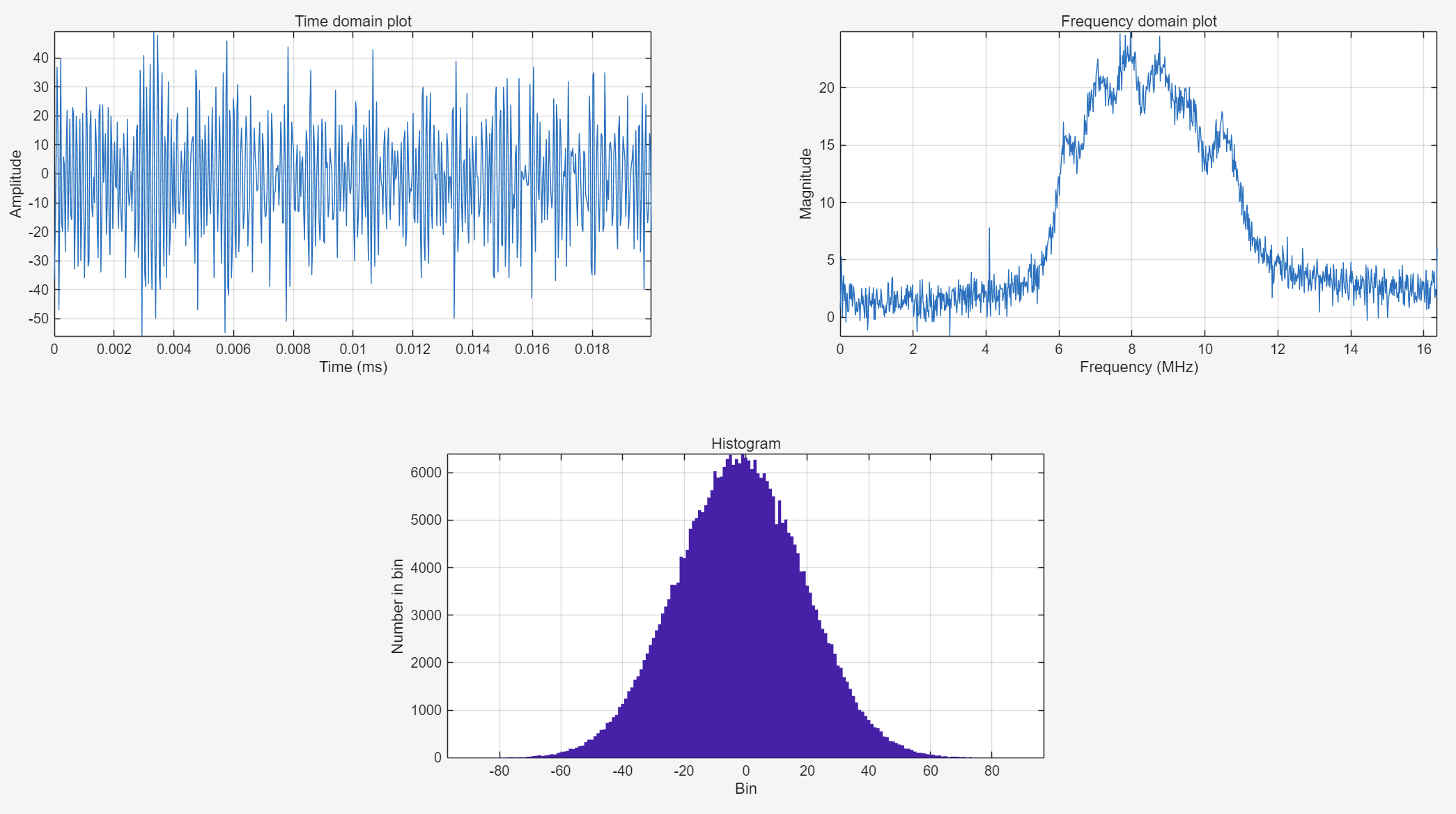

    %--- Time domain plot -------------------------------------------------
    % 画出时域波形图，按照采样频率进行采样，参数设置为每50个点显示一个
    subplot(2, 2, 1);
    plot(1000 * timeScale(1:round(samplesPerCode/50)), ...
        data(1:round(samplesPerCode/50)));

    axis tight;
    grid on;
    title ('Time domain plot');
    xlabel('Time (ms)'); ylabel('Amplitude');

    %--- Frequency domain plot --------------------------------------------
    subplot(2,2,2);
    % 使用pwelch()函数画出功率谱密度图
    pwelch(data-mean(data), 16384, 1024, 2048, settings.samplingFreq);%/1e6)

    axis tight;
    grid on;
    title ('Frequency domain plot');
    xlabel('Frequency (MHz)'); ylabel('Magnitude');

    %--- Histogram --------------------------------------------------------
    subplot(2, 2, 3.5);
    % 用hist()函数绘制柱状图
    hist(data, -128:128)

    dmax = max(abs(data))+1;
    axis tight;
    adata = axis;
    axis([-dmax dmax adata(3) adata(4)]);
    grid on;
    title ('Histogram');
    xlabel('Bin'); ylabel('Number in bin');
else
    %=== Error while opening the data file ================================
    error('Unable to read file %s: %s.', fileNameStr, message);
end % if (fid > 0)

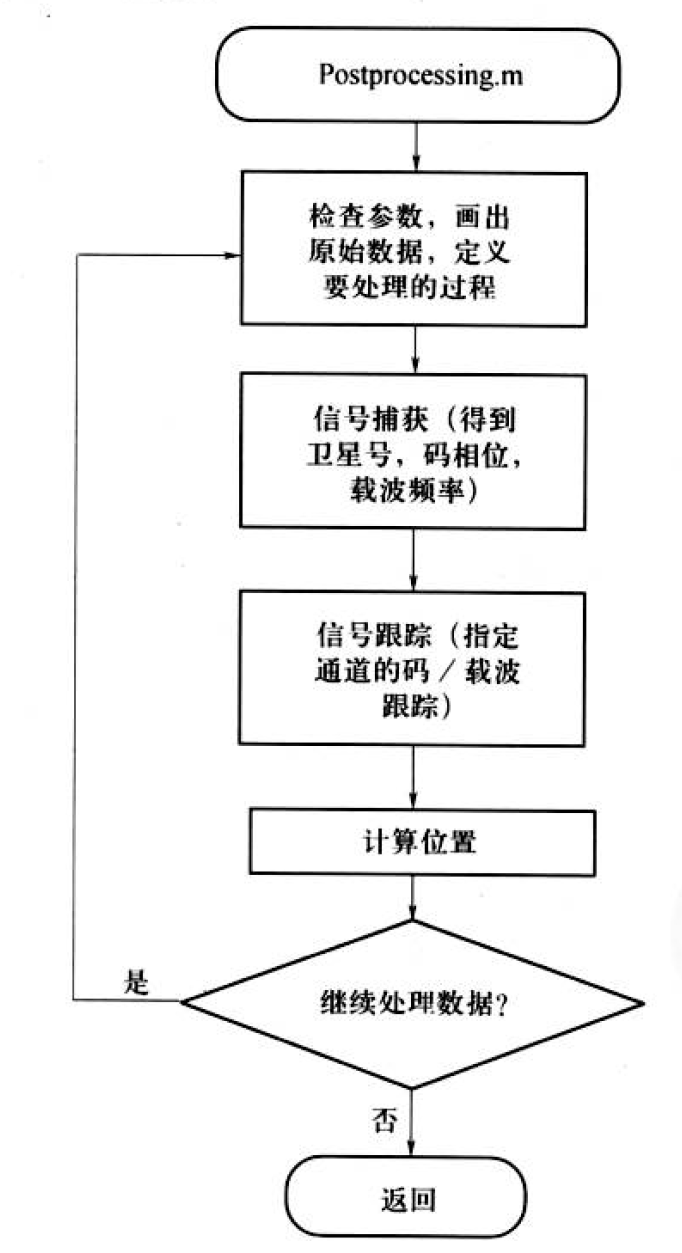

% Script postProcessing.m processes the raw signal from the specified data
% file (in settings) operating on blocks of 37 seconds of data.
%
% First it runs acquisition code identifying the satellites in the file,
% then the code and carrier for each of the satellites are tracked, storing
% the 1msec accumulations.  After processing all satellites in the 37 sec
% data block, then postNavigation is called. It calculates pseudoranges
% and attempts a position solutions. At the end plots are made for that
% block of data.
###################################################################################
%                         THE SCRIPT "RECIPE"
%
% 1.1) Open the data file for the processing and seek to desired point.
%
% 2.1) Acquire satellites
%
% 3.1) Initialize channels (preRun.m).
% 3.2) Pass the channel structure and the file identifier to the tracking
% function. It will read and process the data. The tracking results are
% stored in the trackResults structure. The results can be accessed this
% way (the results are stored each millisecond):
% trackResults(channelNumber).XXX(fromMillisecond : toMillisecond), where
% XXX is a field name of the result (e.g. I_P, codePhase etc.)
%
% 4) Pass tracking results to the navigation solution function. It will
% decode navigation messages, find satellite positions, measure
% pseudoranges and find receiver position.
%
% 5) Plot the results.
%% ==========================Initialization ===============================
disp ('Starting processing...');

[fid, message] = fopen(settings.fileName, 'rb');

%If success, then process the data
if (fid > 0)

    % Move the starting point of processing. Can be used to start the
    % signal processing at any point in the data record (e.g. good for long
    % records or for signal processing in blocks).
    fseek(fid, settings.skipNumberOfBytes, 'bof');

%% Acquisition ============================================================

    % Do acquisition if it is not disabled in settings or if the variable
    % acqResults does not exist.
    if ((settings.skipAcquisition == 0) || ~exist('acqResults', 'var'))

        % Find number of samples per spreading code
        samplesPerCode = round(settings.samplingFreq / ...
                           (settings.codeFreqBasis / settings.codeLength));

        % Read data for acquisition. 11ms of signal are needed for the fine
        % frequency estimation
        data = fread(fid, 11*samplesPerCode, settings.dataType)';

        %--- Do the acquisition -------------------------------------------
        disp ('   Acquiring satellites...');
        acqResults = acquisition(data, settings);

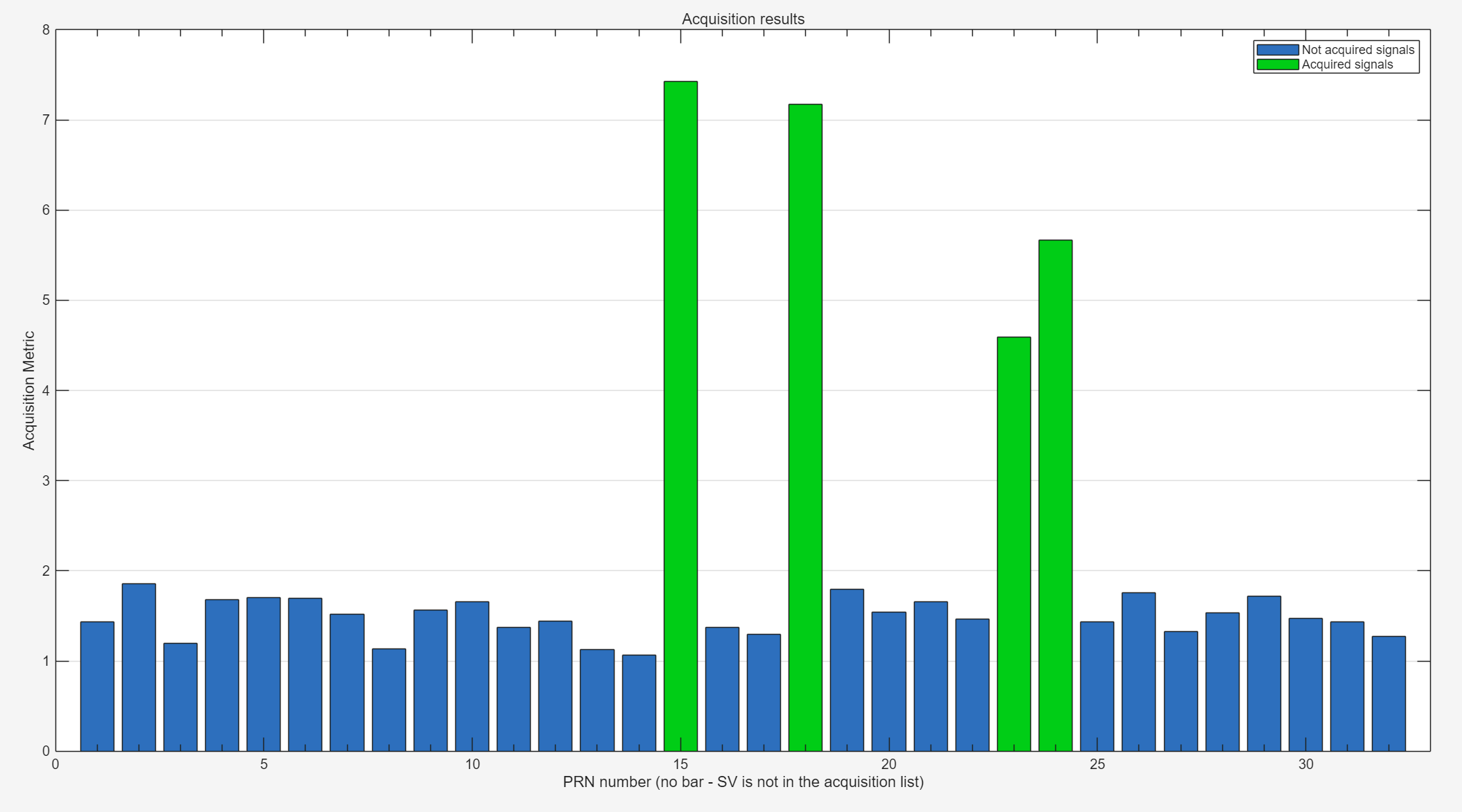

        plotAcquisition(acqResults);
    end

%% Initialize channels and prepare for the run ============================

    % Start further processing only if a GNSS signal was acquired (the
    % field FREQUENCY will be set to 0 for all not acquired signals)
    if (any(acqResults.carrFreq))
        channel = preRun(acqResults, settings);
        showChannelStatus(channel, settings);
    else
        % No satellites to track, exit
        disp('No GNSS signals detected, signal processing finished.');
        trackResults = [];
        return;
    end

%% Track the signal =======================================================
    startTime = now;
    disp (['   Tracking started at ', datestr(startTime)]);

    % Process all channels for given data block
    [trackResults, channel] = tracking(fid, channel, settings);

    % Close the data file
    fclose(fid);

    disp(['   Tracking is over (elapsed time ', ...
                                        datestr(now - startTime, 13), ')'])

    % Auto save the acquisition & tracking results to a file to allow
    % running the positioning solution afterwards.
    disp('   Saving Acq & Tracking results to file "trackingResults.mat"')
    save('trackingResults', ...
                      'trackResults', 'settings', 'acqResults', 'channel');

%% Calculate navigation solutions =========================================
    disp('   Calculating navigation solutions...');
    navSolutions = postNavigation(trackResults, settings);

    disp('   Processing is complete for this data block');

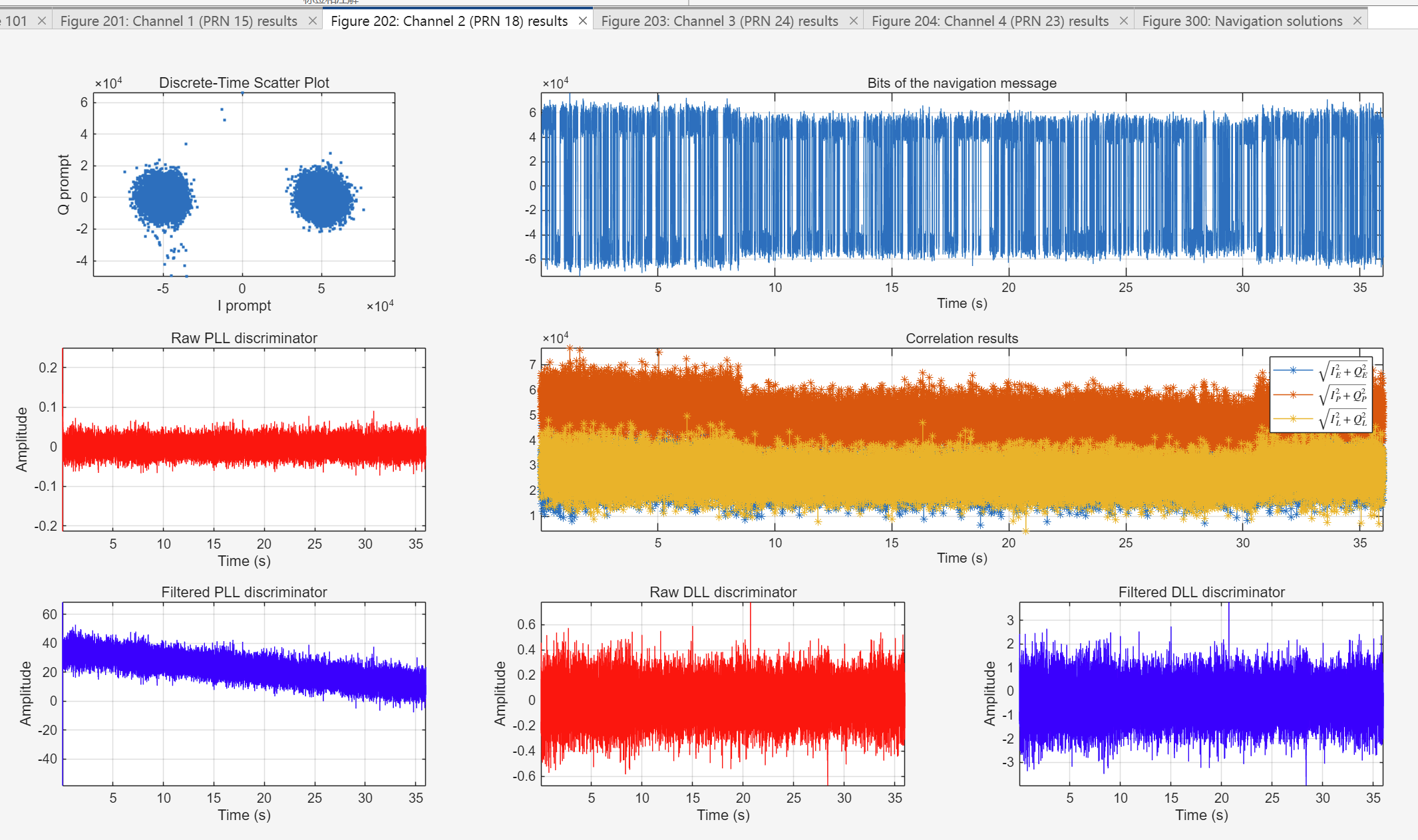

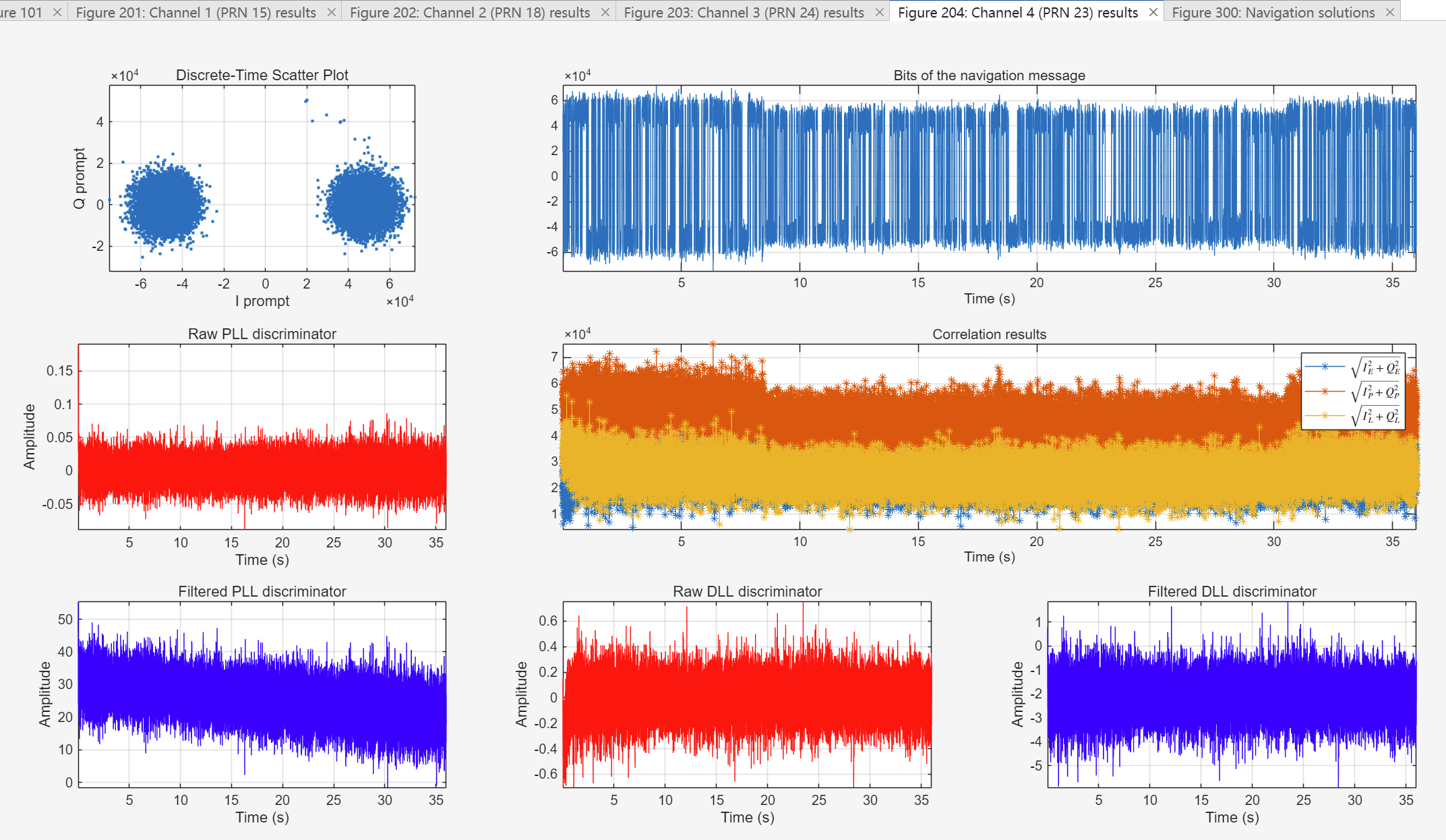

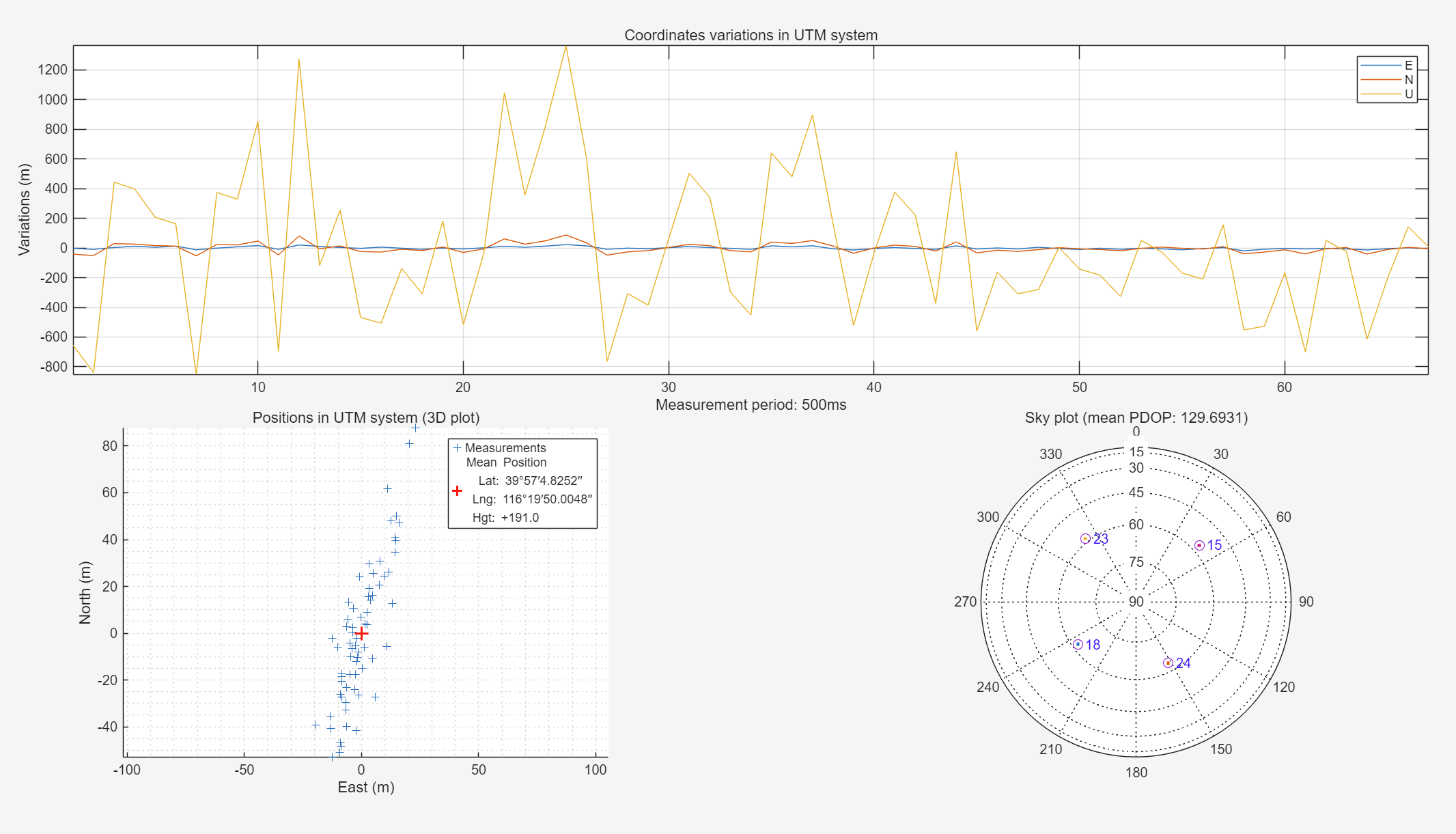

%% Plot all results ===================================================
    disp ('   Ploting results...');
    if settings.plotTracking
        plotTracking(1:settings.numberOfChannels, trackResults, settings);
    end

    plotNavigation(navSolutions, settings);

    disp('Post processing of the signal is over.');

else
    % Error while opening the data file.
    error('Unable to read file %s: %s.', settings.fileName, message);
end % if (fid > 0)

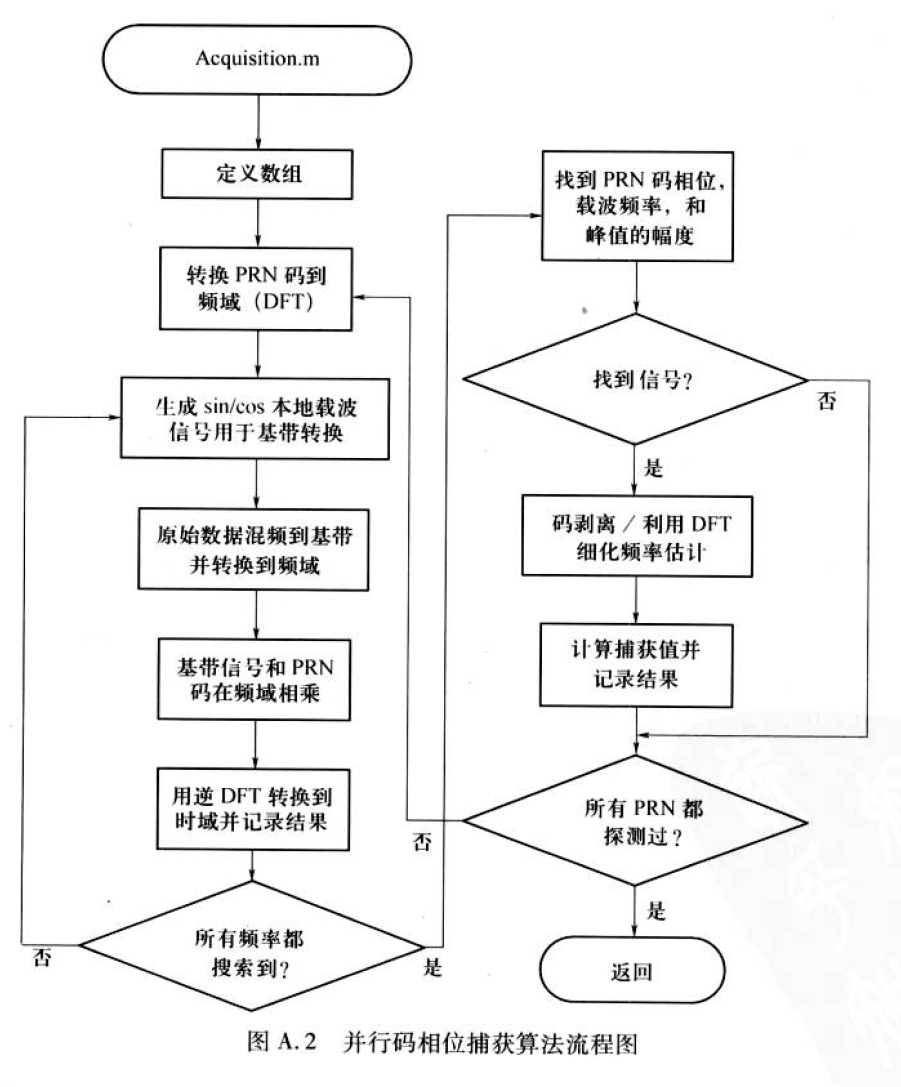

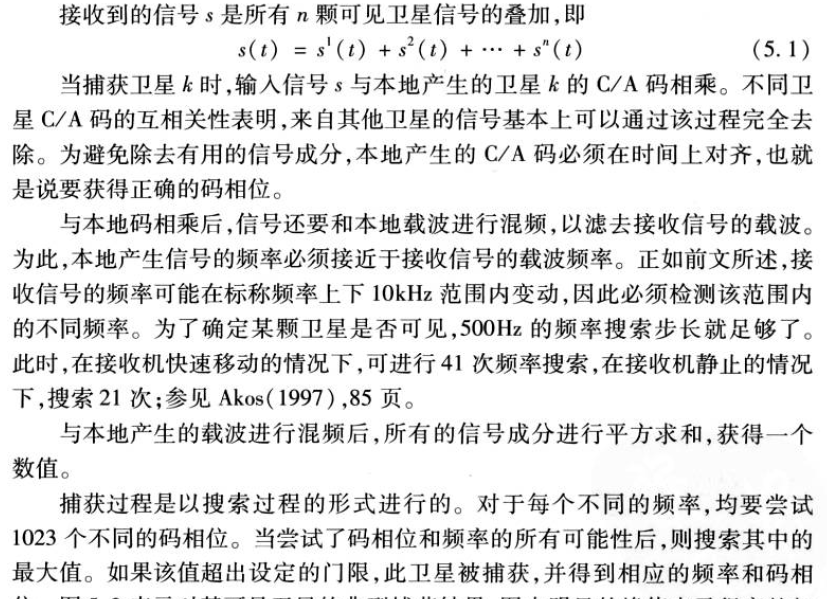

function acqResults = acquisition(longSignal, settings)
%Function performs cold start acquisition on the collected "data". It
%searches for GPS signals of all satellites, which are listed in field
%"acqSatelliteList" in the settings structure. Function saves code phase
%and frequency of the detected signals in the "acqResults" structure.
%
%acqResults = acquisition(longSignal, settings)
%
%   Inputs:
%       longSignal    - 11 ms of raw signal from the front-end
%       settings      - Receiver settings. Provides information about
%                       sampling and intermediate frequencies and other
%                       parameters including the list of the satellites to
%                       be acquired.
%   Outputs:
%       acqResults    - Function saves code phases and frequencies of the
%                       detected signals in the "acqResults" structure. The
%                       field "carrFreq" is set to 0 if the signal is not
%                       detected for the given PRN number.

%CVS record:
%$Id: acquisition.m,v 1.1.2.12 2006/08/14 12:08:03 dpl Exp $

%% Initialization =========================================================

% Find number of samples per spreading code 每1码周期内（C/A码一周期为1ms）的采样点
samplesPerCode = round(settings.samplingFreq / (settings.codeFreqBasis / settings.codeLength));

% Create two 1msec vectors of data to correlate with and one with zero DC
% 取第一个码周期（1ms）内，原始信号的采样数据
signal1 = longSignal(1 : samplesPerCode);
% 取第二个码周期内的采样数据
signal2 = longSignal(samplesPerCode+1 : 2*samplesPerCode);
% 经过去除直流信号处理的原始信号数据，有11ms
signal0DC = longSignal - mean(longSignal);

% Find sampling period 采样时间
ts = 1 / settings.samplingFreq;

% Find phase points of the local carrier wave  产生一个码片周期内的与原始信号同样多的相位点
phasePoints = (0 : (samplesPerCode-1)) * 2 * pi * ts;

% Number of the frequency bins for the given acquisition band (500Hz steps) f_unc/f_bin*2+1=频带数目
numberOfFrqBins = round(settings.acqSearchBand * 2) + 1;

% Generate all C/A codes and sample them according to the sampling freq. 本地生成的C/A码
caCodesTable = makeCaTable(settings);


%--- Initialize arrays to speed up the code -------------------------------
% Search results of all frequency bins and code shifts (for one satellite)
results     = zeros(numberOfFrqBins, samplesPerCode);

% Carrier frequencies of the frequency bins
frqBins     = zeros(1, numberOfFrqBins);


%--- Initialize acqResults ------------------------------------------------
% Carrier frequencies of detected signals
acqResults.carrFreq     = zeros(1, 32);
% C/A code phases of detected signals
acqResults.codePhase    = zeros(1, 32);
% Correlation peak ratios of the detected signals
acqResults.peakMetric   = zeros(1, 32);

fprintf('(');

% Perform search for all listed PRN numbers ...
for PRN = settings.acqSatelliteList

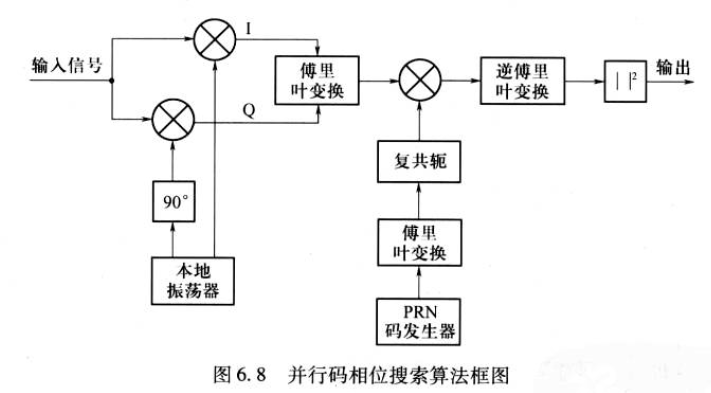

%% Correlate signals ======================================================
    %--- Perform DFT of C/A code ------------------------------------------
    % 对C/A码发生器进行傅里叶变换，然后求复数共轭，得到该矩阵
    caCodeFreqDom = conj(fft(caCodesTable(PRN, :)));

    %--- Make the correlation for whole frequency band (for all freq. bins)
    % 对整个频带进行相关性分析
    for frqBinIndex = 1:numberOfFrqBins

        %--- Generate carrier wave frequency grid (0.5kHz step) -----------
        % 等间距产生载波(0.5kHz步长)
        frqBins(frqBinIndex) = settings.IF - (settings.acqSearchBand/2) * 1000 + 0.5e3 * (frqBinIndex - 1);

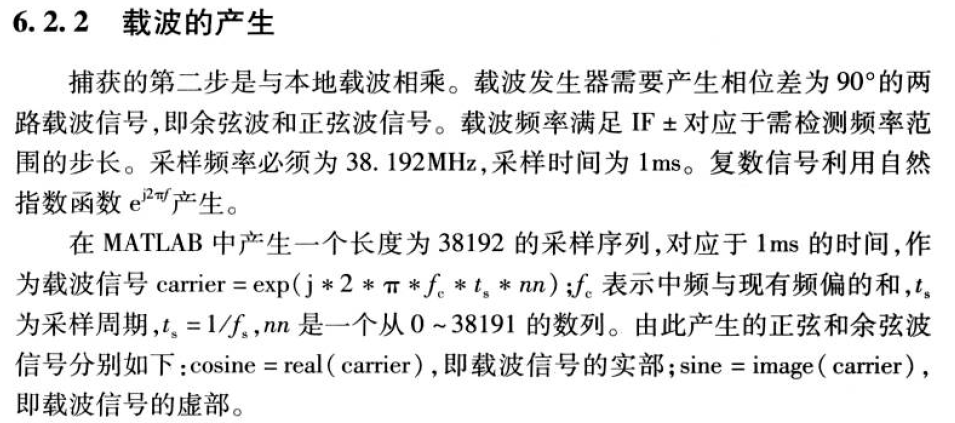

        %--- Generate local sine and cosine -------------------------------
        sinCarr = sin(frqBins(frqBinIndex) * phasePoints);
        cosCarr = cos(frqBins(frqBinIndex) * phasePoints);

        %--- "Remove carrier" from the signal 从信号中分离载波 -----------------------------
        I1      = sinCarr .* signal1;
        Q1      = cosCarr .* signal1;
        I2      = sinCarr .* signal2;
        Q2      = cosCarr .* signal2;

        %--- Convert the baseband signal to frequency domain 将基带信号转换到频域 --------------
        IQfreqDom1 = fft(I1 + j*Q1);
        IQfreqDom2 = fft(I2 + j*Q2);

        %--- Multiplication in the frequency domain (correlation in time domain) 频域相乘
        convCodeIQ1 = IQfreqDom1 .* caCodeFreqDom;
        convCodeIQ2 = IQfreqDom2 .* caCodeFreqDom;

        %--- Perform inverse DFT and store correlation results ------------
        acqRes1 = abs(ifft(convCodeIQ1)) .^ 2;
        acqRes2 = abs(ifft(convCodeIQ2)) .^ 2;

        %--- Check which msec had the greater power and save that, will
        %"blend" 1st and 2nd msec but will correct data bit issues
        % 此处是求解在同一频率单元中的哪一毫秒的相关值最大，并将其保存，此做法将
        % 会使第一秒和第二毫秒的数据进行混合。
        if (max(acqRes1) > max(acqRes2))
            results(frqBinIndex, :) = acqRes1;
        else
            results(frqBinIndex, :) = acqRes2;
        end

    end % frqBinIndex = 1:numberOfFrqBins

%% Look for correlation peaks in the results ==============================
    % Find the highest peak and compare it to the second highest peak
    % The second peak is chosen not closer than 1 chip to the highest peak
    % 找到最高的互相关峰值，并把它和第二高峰做比较，第二个峰值选择不小于1个码片的最高峰值
    %--- Find the correlation peak and the carrier frequency --------------
    [peakSize frequencyBinIndex] = max(max(results, [], 2));

    %--- Find code phase of the same correlation peak ---------------------
    % codePhase 相关值最大时的相位值。找出相关峰值和载波频率
    [peakSize codePhase] = max(max(results));

    %--- Find 1 chip wide C/A code phase exclude range around the peak ----
    % samplesPerCodeChip 1码片宽的采样点数 值大概是38左右
    samplesPerCodeChip   = round(settings.samplingFreq / settings.codeFreqBasis);
    excludeRangeIndex1 = codePhase - samplesPerCodeChip;
    excludeRangeIndex2 = codePhase + samplesPerCodeChip;

    %--- Correct C/A code phase exclude range if the range includes array boundaries
    if excludeRangeIndex1 < 2
        codePhaseRange = excludeRangeIndex2 : (samplesPerCode + excludeRangeIndex1);
    elseif excludeRangeIndex2 >= samplesPerCode
        codePhaseRange = (excludeRangeIndex2 - samplesPerCode) : excludeRangeIndex1;
    else
        codePhaseRange = [1:excludeRangeIndex1, excludeRangeIndex2 : samplesPerCode];
    end

    %--- Find the second highest correlation peak in the same freq. bin ---
    % 这部分是求解互相关的第二大值
    secondPeakSize = max(results(frequencyBinIndex, codePhaseRange));

    %--- Store result -----------------------------------------------------
    % acqResults.peakMetric 最大相关和次大相关的比值
    acqResults.peakMetric(PRN) = peakSize/secondPeakSize;

    % If the result is above threshold, then there is a signal ...
    if (peakSize/secondPeakSize) > settings.acqThreshold

%% Fine resolution frequency search =======================================

        %--- Indicate PRN number of the detected signal -------------------
        fprintf('%02d ', PRN);

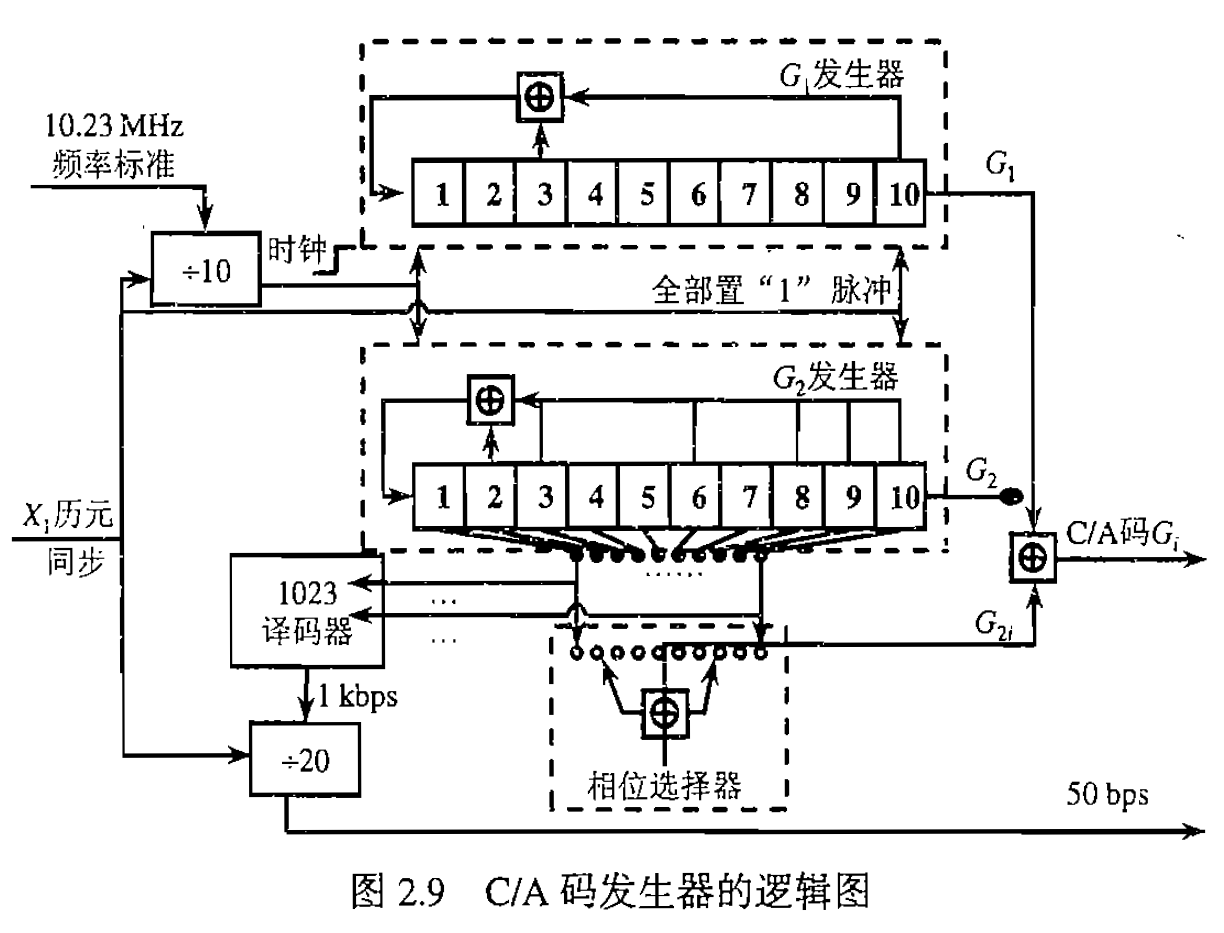

        %--- Generate 10msec long C/A codes sequence for given PRN --------
        caCode = generateCAcode(PRN);

        codeValueIndex = floor((ts * (1:10*samplesPerCode)) / (1/settings.codeFreqBasis));

        % 产生一个10ms的C/A码的矩阵，其采样频率已知
        longCaCode = caCode((rem(codeValueIndex, 1023) + 1));

        %--- Remove C/A code modulation from the original signal ----------
        % (Using detected C/A code phase)
        xCarrier = signal0DC(codePhase:(codePhase + 10*samplesPerCode-1)) .* longCaCode;

        %--- Find the next highest power of two and increase by 8x --------
        fftNumPts = 8*(2^(nextpow2(length(xCarrier))));

        %--- Compute the magnitude of the FFT, find maximum and the
        %associated carrier frequency
        fftxc = abs(fft(xCarrier, fftNumPts));

        uniqFftPts = ceil((fftNumPts + 1) / 2);
        [fftMax, fftMaxIndex] = max(fftxc(5 : uniqFftPts-5));

        fftFreqBins = (0 : uniqFftPts-1) * settings.samplingFreq/fftNumPts;

        %--- Save properties of the detected satellite signal -------------
        % acqResults.carrFreq 追踪载频的结果
        acqResults.carrFreq(PRN)  = fftFreqBins(fftMaxIndex);
        acqResults.codePhase(PRN) = codePhase;

    else
        %--- No signal with this PRN --------------------------------------
        fprintf('. ');
    end   % if (peakSize/secondPeakSize) > settings.acqThreshold

end    % for PRN = satelliteList

%=== Acquisition is over ==================================================
fprintf(')\n');

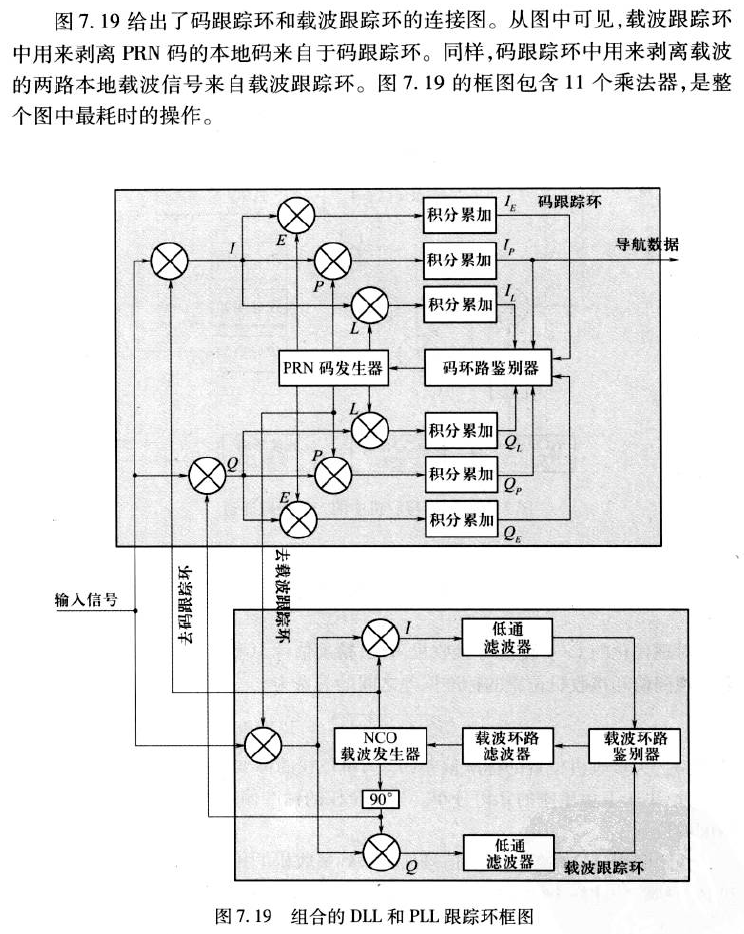

% Code tracking loop parameters
settings.dllDampingRatio         = 0.7;
settings.dllNoiseBandwidth       = 2;       % [Hz]
settings.dllCorrelatorSpacing    = 0.5;     % [chips]

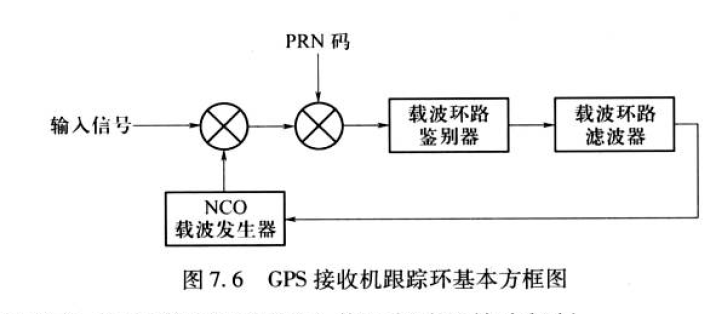

% Carrier tracking loop parameters
% 控制建立时间，前者的选择是过冲和建立时间折中的结果，通常是0.7，后者控制经过滤波器的噪声数量
settings.pllDampingRatio         = 0.7;
settings.pllNoiseBandwidth       = 25;      % [Hz]

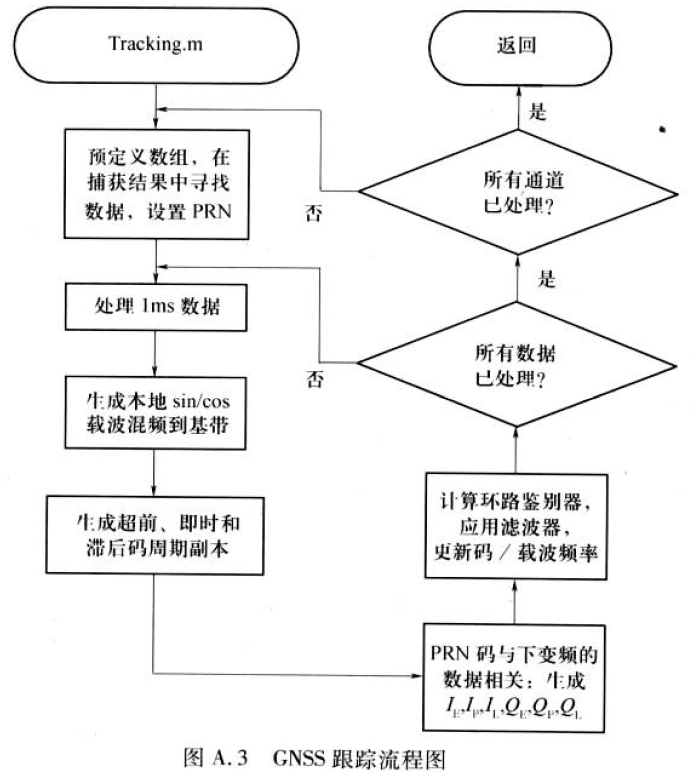

function [trackResults, channel]= tracking(fid, channel, settings)
% Performs code and carrier tracking for all channels.
%
%[trackResults, channel] = tracking(fid, channel, settings)
%
%   Inputs:
%       fid             - file identifier of the signal record.
%       channel         - PRN, carrier frequencies and code phases of all
%                       satellites to be tracked (prepared by preRum.m from
%                       acquisition results).
%       settings        - receiver settings.
%   Outputs:
%       trackResults    - tracking results (structure array). Contains
%                       in-phase prompt outputs and absolute starting
%                       positions of spreading codes, together with other
%                       observation data from the tracking loops. All are
%                       saved every millisecond.

%CVS record:
%$Id: tracking.m,v 1.14.2.32 2007/01/30 09:45:12 dpl Exp $

%% Initialize result structure ============================================

% Channel status
trackResults.status         = '-';      % No tracked signal, or lost lock

% The absolute sample in the record of the C/A code start:
trackResults.absoluteSample = zeros(1, settings.msToProcess);

% Freq of the C/A code:
trackResults.codeFreq       = inf(1, settings.msToProcess);

% Frequency of the tracked carrier wave:
trackResults.carrFreq       = inf(1, settings.msToProcess);

% Outputs from the correlators (In-phase):
trackResults.I_P            = zeros(1, settings.msToProcess);
trackResults.I_E            = zeros(1, settings.msToProcess);
trackResults.I_L            = zeros(1, settings.msToProcess);

% Outputs from the correlators (Quadrature-phase):
trackResults.Q_E            = zeros(1, settings.msToProcess);
trackResults.Q_P            = zeros(1, settings.msToProcess);
trackResults.Q_L            = zeros(1, settings.msToProcess);

% Loop discriminators
trackResults.dllDiscr       = inf(1, settings.msToProcess);
trackResults.dllDiscrFilt   = inf(1, settings.msToProcess);
trackResults.pllDiscr       = inf(1, settings.msToProcess);
trackResults.pllDiscrFilt   = inf(1, settings.msToProcess);

%--- Copy initial settings for all channels -------------------------------
trackResults = repmat(trackResults, 1, settings.numberOfChannels);

%% Initialize tracking variables ==========================================

codePeriods = settings.msToProcess;     % For GPS one C/A code is one ms

%--- DLL variables --------------------------------------------------------
% Define early-late offset (in chips)
earlyLateSpc = settings.dllCorrelatorSpacing;

% Summation interval
PDIcode = 0.001;

% Calculate filter coefficient values
[tau1code, tau2code] = calcLoopCoef(settings.dllNoiseBandwidth, ...
                                    settings.dllDampingRatio, ...
                                    1.0);

%--- PLL variables --------------------------------------------------------
% Summation interval
PDIcarr = 0.001;

% Calculate filter coefficient values
[tau1carr, tau2carr] = calcLoopCoef(settings.pllNoiseBandwidth, ...
                                    settings.pllDampingRatio, ...
                                    0.25);
hwb = waitbar(0,'Tracking...');

%% Start processing channels ==============================================
for channelNr = 1:settings.numberOfChannels

    % Only process if PRN is non zero (acquisition was successful)
    if (channel(channelNr).PRN ~= 0)
        % Save additional information - each channel's tracked PRN
        trackResults(channelNr).PRN     = channel(channelNr).PRN;

        % Move the starting point of processing. Can be used to start the
        % signal processing at any point in the data record (e.g. for long
        % records). In addition skip through that data file to start at the
        % appropriate sample (corresponding to code phase). Assumes sample
        % type is schar (or 1 byte per sample)
        fseek(fid, ...
              settings.skipNumberOfBytes + channel(channelNr).codePhase-1, ...
              'bof');


        % Get a vector with the C/A code sampled 1x/chip
        caCode = generateCAcode(channel(channelNr).PRN);
        % Then make it possible to do early and late versions
        caCode = [caCode(1023) caCode caCode(1)];

        %--- Perform various initializations ------------------------------

        % define initial code frequency basis of NCO
        codeFreq      = settings.codeFreqBasis;
        % define residual code phase (in chips)
        remCodePhase  = 0.0;
        % define carrier frequency which is used over whole tracking period
        carrFreq      = channel(channelNr).acquiredFreq;
        carrFreqBasis = channel(channelNr).acquiredFreq;
        % define residual carrier phase
        remCarrPhase  = 0.0;

        %code tracking loop parameters
        oldCodeNco   = 0.0;
        oldCodeError = 0.0;

        %carrier/Costas loop parameters
        oldCarrNco   = 0.0;
        oldCarrError = 0.0;

        %=== Process the number of specified code periods =================
        for loopCnt =  1:codePeriods

%% GUI update -------------------------------------------------------------
            % The GUI is updated every 50ms. This way Matlab GUI is still
            % responsive enough. At the same time Matlab is not occupied
            % all the time with GUI task.
            if (rem(loopCnt, 50) == 0)
                try
                    waitbar(loopCnt/codePeriods, ...
                            hwb, ...
                            ['Tracking: Ch ', int2str(channelNr), ...
                            ' of ', int2str(settings.numberOfChannels), ...
                            '; PRN#', int2str(channel(channelNr).PRN), ...
                            '; Completed ',int2str(loopCnt), ...
                            ' of ', int2str(codePeriods), ' msec']);
                catch
                    % The progress bar was closed. It is used as a signal
                    % to stop, "cancel" processing. Exit.
                    disp('Progress bar closed, exiting...');
                    return
                end
            end

%% Read next block of data ------------------------------------------------
            % Find the size of a "block" or code period in whole samples

            % Update the phasestep based on code freq (variable) and
            % sampling frequency (fixed)
            codePhaseStep = codeFreq / settings.samplingFreq;

            blksize = ceil((settings.codeLength-remCodePhase) / codePhaseStep);

            % Read in the appropriate number of samples to process this
            % interation
            [rawSignal, samplesRead] = fread(fid, ...
                                             blksize, settings.dataType);
            rawSignal = rawSignal';  %transpose vector

            % If did not read in enough samples, then could be out of
            % data - better exit
            if (samplesRead ~= blksize)
                disp('Not able to read the specified number of samples  for tracking, exiting!')
                fclose(fid);
                return
            end

%% Set up all the code phase tracking information -------------------------
            % Define index into early code vector
            tcode       = (remCodePhase-earlyLateSpc) : ...
                          codePhaseStep : ...
                          ((blksize-1)*codePhaseStep+remCodePhase-earlyLateSpc);
            tcode2      = ceil(tcode) + 1;
            earlyCode   = caCode(tcode2);

            % Define index into late code vector
            tcode       = (remCodePhase+earlyLateSpc) : ...
                          codePhaseStep : ...
                          ((blksize-1)*codePhaseStep+remCodePhase+earlyLateSpc);
            tcode2      = ceil(tcode) + 1;
            lateCode    = caCode(tcode2);

            % Define index into prompt code vector
            tcode       = remCodePhase : ...
                          codePhaseStep : ...
                          ((blksize-1)*codePhaseStep+remCodePhase);
            tcode2      = ceil(tcode) + 1;
            promptCode  = caCode(tcode2);

            remCodePhase = (tcode(blksize) + codePhaseStep) - 1023.0;

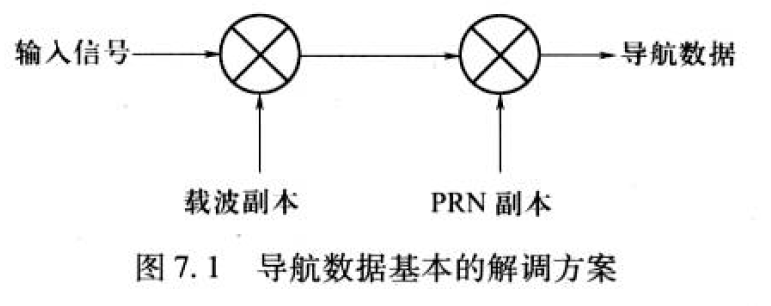

%% Generate the carrier frequency to mix the signal to baseband -----------
            time    = (0:blksize) ./ settings.samplingFreq;

            % Get the argument to sin/cos functions
            trigarg = ((carrFreq * 2.0 * pi) .* time) + remCarrPhase;
            remCarrPhase = rem(trigarg(blksize+1), (2 * pi));

            % Finally compute the signal to mix the collected data to bandband
            carrCos = cos(trigarg(1:blksize));
            carrSin = sin(trigarg(1:blksize));

%% Generate the six standard accumulated values ---------------------------
            % First mix to baseband
            qBasebandSignal = carrCos .* rawSignal;
            iBasebandSignal = carrSin .* rawSignal;

            % Now get early, late, and prompt values for each
            I_E = sum(earlyCode  .* iBasebandSignal);
            Q_E = sum(earlyCode  .* qBasebandSignal);
            I_P = sum(promptCode .* iBasebandSignal);
            Q_P = sum(promptCode .* qBasebandSignal);
            I_L = sum(lateCode   .* iBasebandSignal);
            Q_L = sum(lateCode   .* qBasebandSignal);

%% Find PLL error and update carrier NCO ----------------------------------

            % Implement carrier loop discriminator (phase detector)
            carrError = atan(Q_P / I_P) / (2.0 * pi);

            % Implement carrier loop filter and generate NCO command
            carrNco = oldCarrNco + (tau2carr/tau1carr) * ...
                (carrError - oldCarrError) + carrError * (PDIcarr/tau1carr);
            oldCarrNco   = carrNco;
            oldCarrError = carrError;

            % Modify carrier freq based on NCO command
            carrFreq = carrFreqBasis + carrNco;

            trackResults(channelNr).carrFreq(loopCnt) = carrFreq;

%% Find DLL error and update code NCO -------------------------------------
            codeError = (sqrt(I_E * I_E + Q_E * Q_E) - sqrt(I_L * I_L + Q_L * Q_L)) / ...
                (sqrt(I_E * I_E + Q_E * Q_E) + sqrt(I_L * I_L + Q_L * Q_L));

            % Implement code loop filter and generate NCO command
            codeNco = oldCodeNco + (tau2code/tau1code) * ...
                (codeError - oldCodeError) + codeError * (PDIcode/tau1code);
            oldCodeNco   = codeNco;
            oldCodeError = codeError;

            % Modify code freq based on NCO command
            codeFreq = settings.codeFreqBasis - codeNco;

            trackResults(channelNr).codeFreq(loopCnt) = codeFreq;

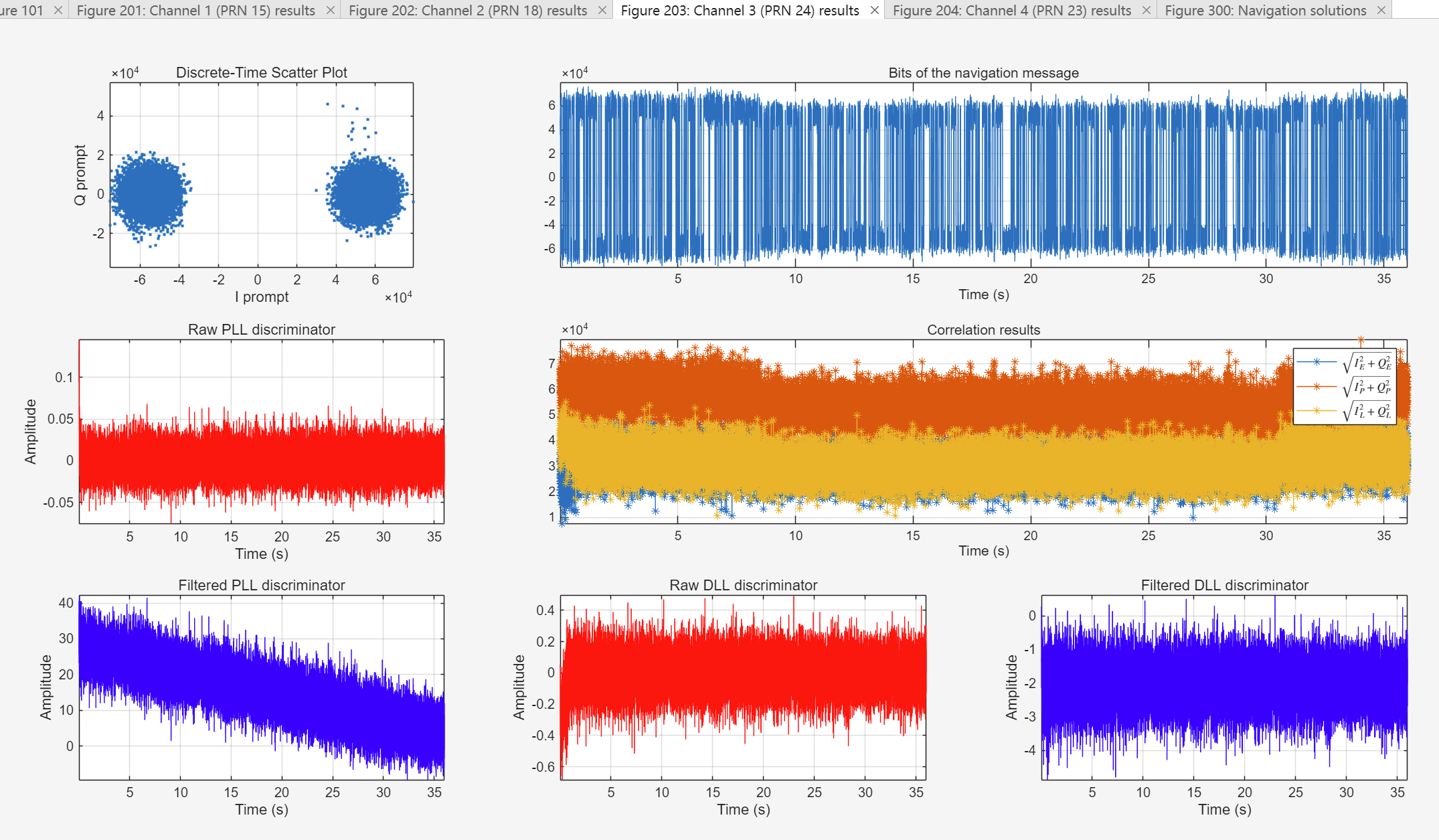

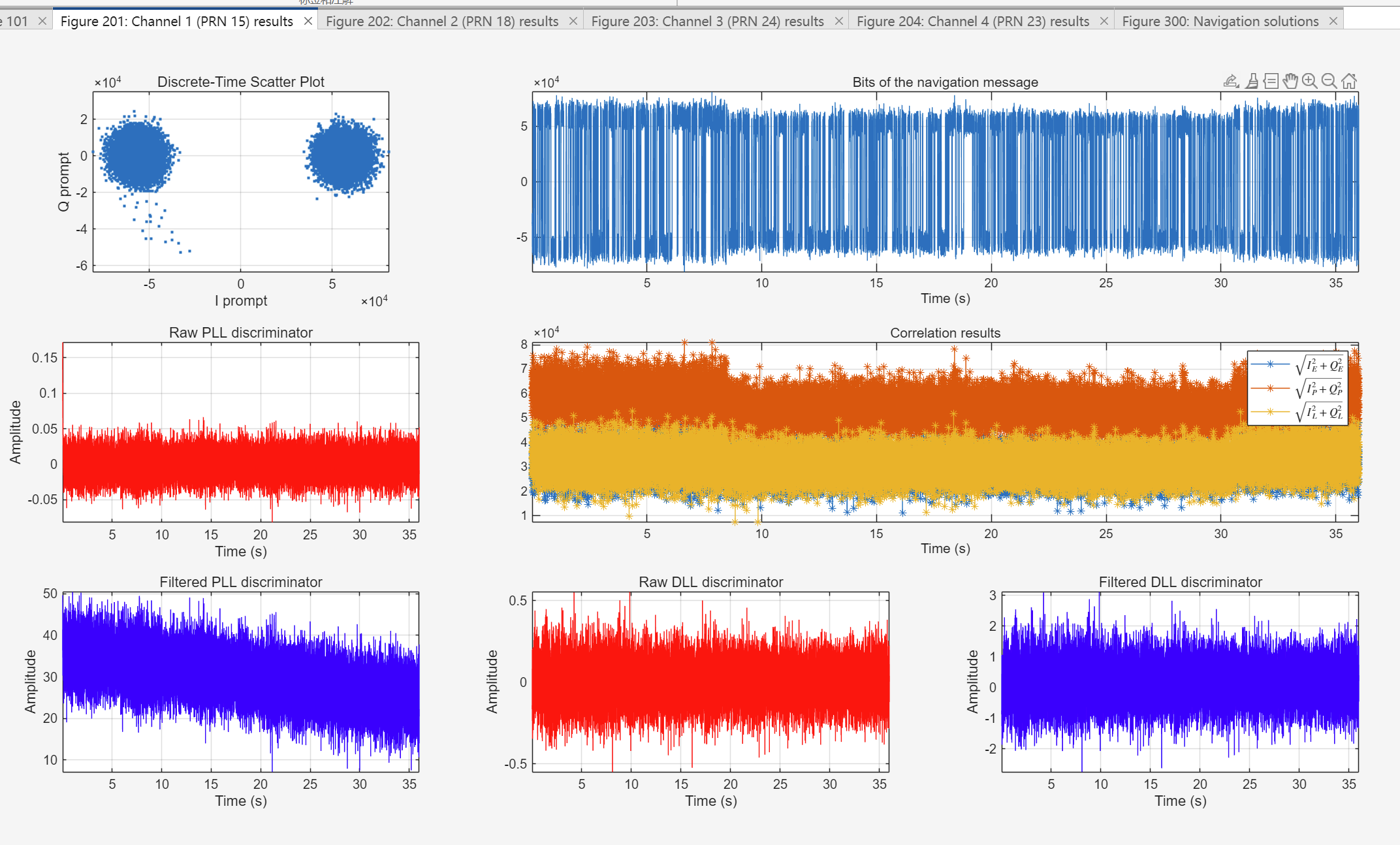

%% Record various measures to show in postprocessing ----------------------
            % Record sample number (based on 8bit samples)
            trackResults(channelNr).absoluteSample(loopCnt) = ftell(fid);

            trackResults(channelNr).dllDiscr(loopCnt)       = codeError;
            trackResults(channelNr).dllDiscrFilt(loopCnt)   = codeNco;
            trackResults(channelNr).pllDiscr(loopCnt)       = carrError;
            trackResults(channelNr).pllDiscrFilt(loopCnt)   = carrNco;

            trackResults(channelNr).I_E(loopCnt) = I_E;
            trackResults(channelNr).I_P(loopCnt) = I_P;
            trackResults(channelNr).I_L(loopCnt) = I_L;
            trackResults(channelNr).Q_E(loopCnt) = Q_E;
            trackResults(channelNr).Q_P(loopCnt) = Q_P;
            trackResults(channelNr).Q_L(loopCnt) = Q_L;
        end % for loopCnt

        % If we got so far, this means that the tracking was successful
        % Now we only copy status, but it can be update by a lock detector
        % if implemented
        trackResults(channelNr).status  = channel(channelNr).status;

    end % if a PRN is assigned
end % for channelNr

% Close the waitbar
close(hwb)

function [navSolutions, eph] = postNavigation(trackResults, settings)
%Function calculates navigation solutions for the receiver (pseudoranges,
%positions). At the end it converts coordinates from the WGS84 system to
%the UTM, geocentric or any additional coordinate system.
%
%[navSolutions, eph] = postNavigation(trackResults, settings)
%
%   Inputs:
%       trackResults    - results from the tracking function (structure
%                       array).
%       settings        - receiver settings.
%   Outputs:
%       navSolutions    - contains measured pseudoranges, receiver
%                       clock error, receiver coordinates in several
%                       coordinate systems (at least ECEF and UTM).
%       eph             - received ephemerides of all SV (structure array).

%CVS record:
%$Id: postNavigation.m,v 1.1.2.22 2006/08/09 17:20:11 dpl Exp $

%% Check is there enough data to obtain any navigation solution ===========
% It is necessary to have at least three subframes (number 1, 2 and 3) to
% find satellite coordinates. Then receiver position can be found too.
% The function requires all 5 subframes, because the tracking starts at
% arbitrary point. Therefore the first received subframes can be any three
% from the 5.
% One subframe length is 6 seconds, therefore we need at least 30 sec long
% record (5 * 6 = 30 sec = 30000ms). We add extra seconds for the cases,
% when tracking has started in a middle of a subframe.

if (settings.msToProcess < 36000) || (sum([trackResults.status] ~= '-') < 4)
    % Show the error message and exit
    disp('Record is to short or too few satellites tracked. Exiting!');
    navSolutions = [];
    eph          = [];
    return
end

%% Find preamble start positions ==========================================

[subFrameStart, activeChnList] = findPreambles(trackResults, settings);

%% Decode ephemerides =====================================================

% for channelNr = activeChnList
for channelNr = 1:numel(activeChnList)

    %=== Convert tracking output to navigation bits =======================

    %--- Copy 5 sub-frames long record from tracking output ---------------
    navBitsSamples = trackResults(channelNr).I_P(subFrameStart(channelNr) - 20 : ...
                               subFrameStart(channelNr) + (1500 * 20) -1)';

    %--- Group every 20 vales of bits into columns ------------------------
    navBitsSamples = reshape(navBitsSamples, ...
                             20, (size(navBitsSamples, 1) / 20));

    %--- Sum all samples in the bits to get the best estimate -------------
    navBits = sum(navBitsSamples);

    %--- Now threshold and make 1 and 0 -----------------------------------
    % The expression (navBits > 0) returns an array with elements set to 1
    % if the condition is met and set to 0 if it is not met.
    navBits = (navBits > 0);

    %--- Convert from decimal to binary -----------------------------------
    % The function ephemeris expects input in binary form. In Matlab it is
    % a string array containing only "0" and "1" characters.
    navBitsBin = dec2bin(navBits);

    %=== Decode ephemerides and TOW of the first sub-frame ================
    [eph(trackResults(channelNr).PRN), TOW] = ...
                            ephemeris(navBitsBin(2:1501)', navBitsBin(1));

    %--- Exclude satellite if it does not have the necessary nav data -----
    if (isempty(eph(trackResults(channelNr).PRN).IODC) || ...
        isempty(eph(trackResults(channelNr).PRN).IODE_sf2) || ...
        isempty(eph(trackResults(channelNr).PRN).IODE_sf3))

        %--- Exclude channel from the list (from further processing) ------
        activeChnList = setdiff(activeChnList, channelNr);
    end
end

%% Check if the number of satellites is still above 3 =====================
if (isempty(activeChnList) || (size(activeChnList, 2) < 4))
    % Show error message and exit
    disp('Too few satellites with ephemeris data for postion calculations. Exiting!');
    navSolutions = [];
    eph          = [];
    return
end

%% Initialization =========================================================

% Set the satellite elevations array to INF to include all satellites for
% the first calculation of receiver position. There is no reference point
% to find the elevation angle as there is no receiver position estimate at
% this point.
satElev  = inf(1, settings.numberOfChannels);

% Save the active channel list. The list contains satellites that are
% tracked and have the required ephemeris data. In the next step the list
% will depend on each satellite's elevation angle, which will change over
% time.
readyChnList = activeChnList;

transmitTime = TOW;

%##########################################################################
%#   Do the satellite and receiver position calculations                  #
%##########################################################################

%% Initialization of current measurement ==================================
for currMeasNr = 1:fix((settings.msToProcess - max(subFrameStart)) / settings.navSolPeriod)
    fprintf('currMeasNr is %d\r\n', currMeasNr)
    % Exclude satellites, that are belove elevation mask
    % activeChnList = intersect(find(satElev >= settings.elevationMask), readyChnList);
    activeChnList=intersect(find(satElev>=settings.elevationMask),readyChnList,'legacy');

    % Save list of satellites used for position calculation
    navSolutions.channel.PRN(activeChnList, currMeasNr) = [trackResults(activeChnList).PRN];

    % These two lines help the skyPlot function. The satellites excluded
    % do to elevation mask will not "jump" to possition (0,0) in the sky
    % plot.
    navSolutions.channel.el(:, currMeasNr) = NaN(settings.numberOfChannels, 1);
    navSolutions.channel.az(:, currMeasNr) = NaN(settings.numberOfChannels, 1);

%% Find pseudoranges ======================================================
    navSolutions.channel.rawP(:, currMeasNr) = calculatePseudoranges(...
            trackResults, ...
            subFrameStart + settings.navSolPeriod * (currMeasNr-1), ...
            activeChnList, settings);

%% Find satellites positions and clocks corrections =======================
    [satPositions, satClkCorr] = satpos(transmitTime, ...
                                        [trackResults(activeChnList).PRN], ...
                                        eph, settings);

%% Find receiver position =================================================

    % 3D receiver position can be found only if signals from more than 3
    % satellites are available
    if size(activeChnList, 2) > 3

        %=== Calculate receiver position ==================================
        [xyzdt, ...
         navSolutions.channel.el(activeChnList, currMeasNr), ...
         navSolutions.channel.az(activeChnList, currMeasNr), ...
         navSolutions.DOP(:, currMeasNr)] = ...
            leastSquarePos(satPositions, ...
                           navSolutions.channel.rawP(activeChnList, currMeasNr)' + satClkCorr * settings.c, ...
                           settings);

        %--- Save results -------------------------------------------------
        navSolutions.X(currMeasNr)  = xyzdt(1);
        navSolutions.Y(currMeasNr)  = xyzdt(2);
        navSolutions.Z(currMeasNr)  = xyzdt(3);
        navSolutions.dt(currMeasNr) = xyzdt(4);

        % Update the satellites elevations vector
        satElev = navSolutions.channel.el(:, currMeasNr);

        %=== Correct pseudorange measurements for clocks errors ===========
        navSolutions.channel.correctedP(activeChnList, currMeasNr) = ...
                navSolutions.channel.rawP(activeChnList, currMeasNr) + ...
                satClkCorr' * settings.c + navSolutions.dt(currMeasNr);

%% Coordinate conversion ==================================================

        %=== Convert to geodetic coordinates ==============================
        [navSolutions.latitude(currMeasNr), ...
         navSolutions.longitude(currMeasNr), ...
         navSolutions.height(currMeasNr)] = cart2geo(...
                                            navSolutions.X(currMeasNr), ...
                                            navSolutions.Y(currMeasNr), ...
                                            navSolutions.Z(currMeasNr), ...
                                            5);

        %=== Convert to UTM coordinate system =============================
        navSolutions.utmZone = findUtmZone(navSolutions.latitude(currMeasNr), ...
                                           navSolutions.longitude(currMeasNr));

        [navSolutions.E(currMeasNr), ...
         navSolutions.N(currMeasNr), ...
         navSolutions.U(currMeasNr)] = cart2utm(xyzdt(1), xyzdt(2), ...
                                                xyzdt(3), ...
                                                navSolutions.utmZone);

    else % if size(activeChnList, 2) > 3
        %--- There are not enough satellites to find 3D position ----------
        disp(['   Measurement No. ', num2str(currMeasNr), ': Not enough information for position solution.']);

        %--- Set the missing solutions to NaN. These results will be
        %excluded automatically in all plots. For DOP it is easier to use
        %zeros. NaN values might need to be excluded from results in some
        %of further processing to obtain correct results.
        navSolutions.X(currMeasNr)           = NaN;
        navSolutions.Y(currMeasNr)           = NaN;
        navSolutions.Z(currMeasNr)           = NaN;
        navSolutions.dt(currMeasNr)          = NaN;
        navSolutions.DOP(:, currMeasNr)      = zeros(5, 1);
        navSolutions.latitude(currMeasNr)    = NaN;
        navSolutions.longitude(currMeasNr)   = NaN;
        navSolutions.height(currMeasNr)      = NaN;
        navSolutions.E(currMeasNr)           = NaN;
        navSolutions.N(currMeasNr)           = NaN;
        navSolutions.U(currMeasNr)           = NaN;

        navSolutions.channel.az(activeChnList, currMeasNr) = NaN(1, length(activeChnList));
        navSolutions.channel.el(activeChnList, currMeasNr) = NaN(1, length(activeChnList));

        % TODO: Know issue. Satellite positions are not updated if the
        % satellites are excluded do to elevation mask. Therefore rasing
        % satellites will be not included even if they will be above
        % elevation mask at some point. This would be a good place to
        % update positions of the excluded satellites.

    end % if size(activeChnList, 2) > 3

    %=== Update the transmit time ("measurement time") ====================
    transmitTime = transmitTime + settings.navSolPeriod / 1000;

end %for currMeasNr...
